Brand: Ado
Ado Air Carbon
Tax included
Only 4 in stock

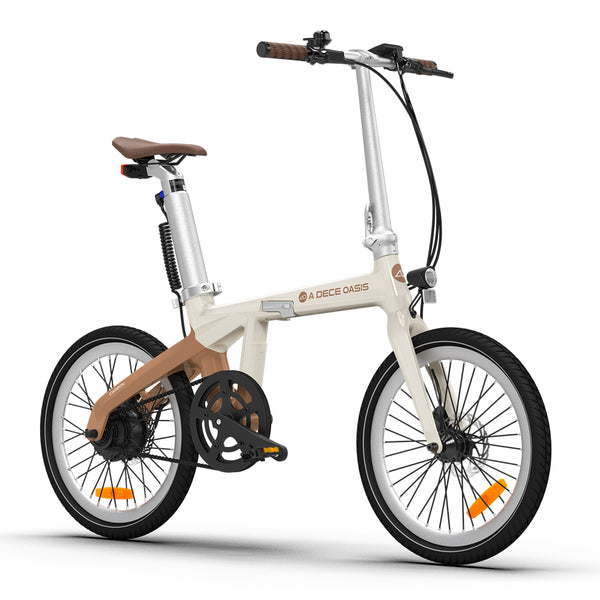

The ADO Air Carbon is the ultimate lightweight folding electric bike, combining sleek design, advanced features, and unmatched convenience. Crafted from premium carbon fiber, it’s the lightest in its class while offering an impressive 100KM range and a smooth, silent boost from its 250W Bafang Motor. Its 20x1.75-inch tyres ensure a stable and comfortable ride, whether navigating city streets or cruising longer distances. With a 15-second folding mechanism, the bike is effortlessly portable and easy to store. The Smart Connect module lets you track your bike via GPS and receive instant alerts for unexpected movement or falls, keeping your bike secure. With a dual-sided torque sensor for precise control, a 36V/9.6Ah battery, an IPX5 water resistance rating (Display: IPX7), and a top speed of 25 km/h, this e-bike delivers power, portability, and performance in one sleek package. Perfect for seamless urban travel or weekend adventures, the ADO Air Carbon is designed to elevate your ride.
SPECIFICATION
Motor & Performance

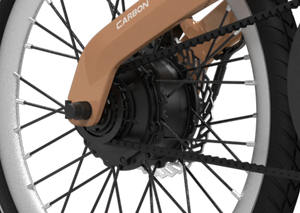

- Motor Power & Voltage - 250W
- Top Speed - 25km/h
- Electric Only Range - 31 miles (50 km)
- Pedal Assisted Range - 62 miles (100 km)
- Braking System - Hydraulic disc brakes
- Transmission system - Belt drive
Battery
- Battery Type - Lithium-Ion
- Charging Time - 4-6 hours
- Output Voltage - DC 36 V
- Charging Temperature - 0~40°C
- Capacity - 36 V 9.6 AH
- Protection System - Over-heating, over-current, short circuit, over-charge, over-discharge protection
Dimensions & Components
- APP - ADO Smart APP
- Display *(IP X7) - 2.4'' IPS color display
- Suspension -Front fork Suspension
- Sensor - Torque sensor
- Unfolded Dimensions (L x W x H) - 1500*580*1115mm
- Folded Dimensions (L x W x H) - 870*480*660mm
- Frame Material - Carbon fiber
- Tyres - 20*1.75 inch
- Maximum Load - 120 kg
- Waterproof Level - IPX5 (display IPX7)
- Net Weight - 20 kg
- Safety Warning - Electronic horn
ACCESSORIES AND PACKAGE CONTENTS
1 x Air Carbon E-Bike (Battery included)
1 x 42V 2A Battery Charger
1 x Set of Installation Tools
1 x Battery Lock
1 x Air Battery
DELIVERY AND WARRANTY
Our standard delivery timeframe for your orders is usually 3-6 working days. While we strive to deliver within this timeframe, there might be occasional instances where it may take a couple of extra days. However, we are proud to mention that, in most cases, our delivery process is even faster.
Warranty
We prioritise your peace of mind when you choose to purchase from us. That's why we have attentive customer service, warranties, and a UK repair centre.
Warranty coverage:
- All main E-Bike parts such as: Frame, front fork, handlebars, charger, folding tubes, saddle tubes, and battery (1-year warranty period).
- Headlights and taillights (6-month warranty period).
Please note that the warranty does not cover:
- Issues arising from normal wear and tear and general use of the e-bike.
Please refer to our dedicated warranty page for more details on our warranty process.
FAQs
Can I modify the bike by myself?
If you're not acquainted with the bike's performance, we advise against making unauthorized modifications. If modification is necessary, kindly reach out to our customer service tram to confirm whether it is permissible.
My bike chain is scratching with the wheel, so I can't change gears, and the derailleur looks deformed, what should I do?
If the derailleur guard touches the derailleur screw, the derailleur guard needs to be pulled out. In order to maintain a distance of 15mm between the transmission and the protection device.
Where do you ship to?
Currently, we ship to the UK, ensuring a seamless delivery experience for our valued customers. For any inquiries regarding shipping, feel free to contact us. We're here to assist you.
Should I keep my box?
Yes. We recommend you keep your box after the delivery of your e-scooter. This is for the unlikely event that you'd need to return it to us.
Visit our returns and refunds page for more information.

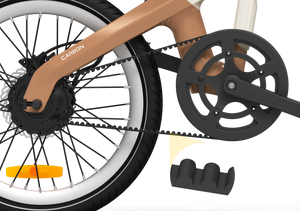

Care-Free Carbon Belt
Enjoy a smooth, silent ride with the durable carbon belt, requiring minimal maintenance and designed to last.

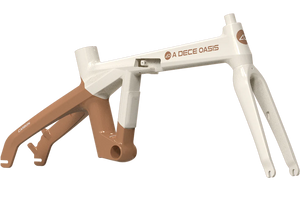

Carbon Fiber Frame
Lightweight yet incredibly strong, the carbon fiber frame ensures easy portability and unmatched durability.
Hydraulic Disc Brakes
Experience precise stopping power and reliable performance, even in challenging conditions, with advanced hydraulic disc brakes.
