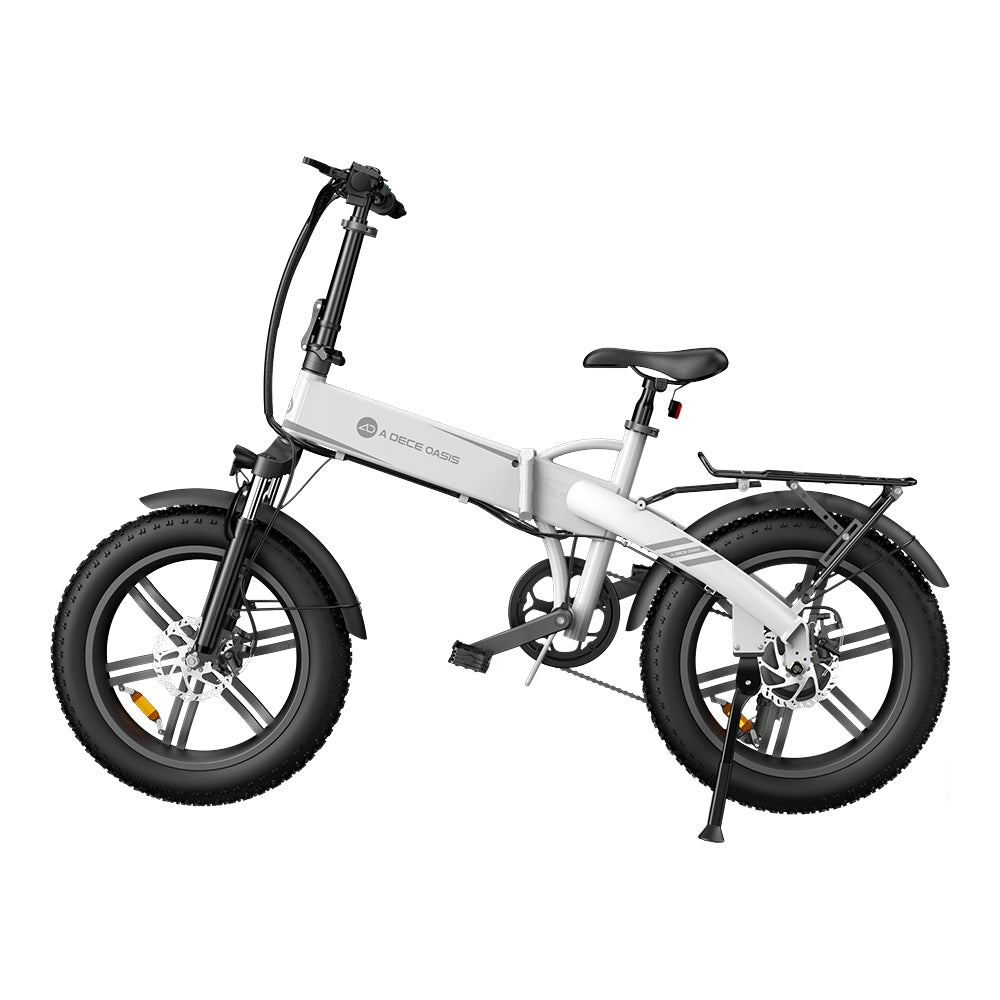

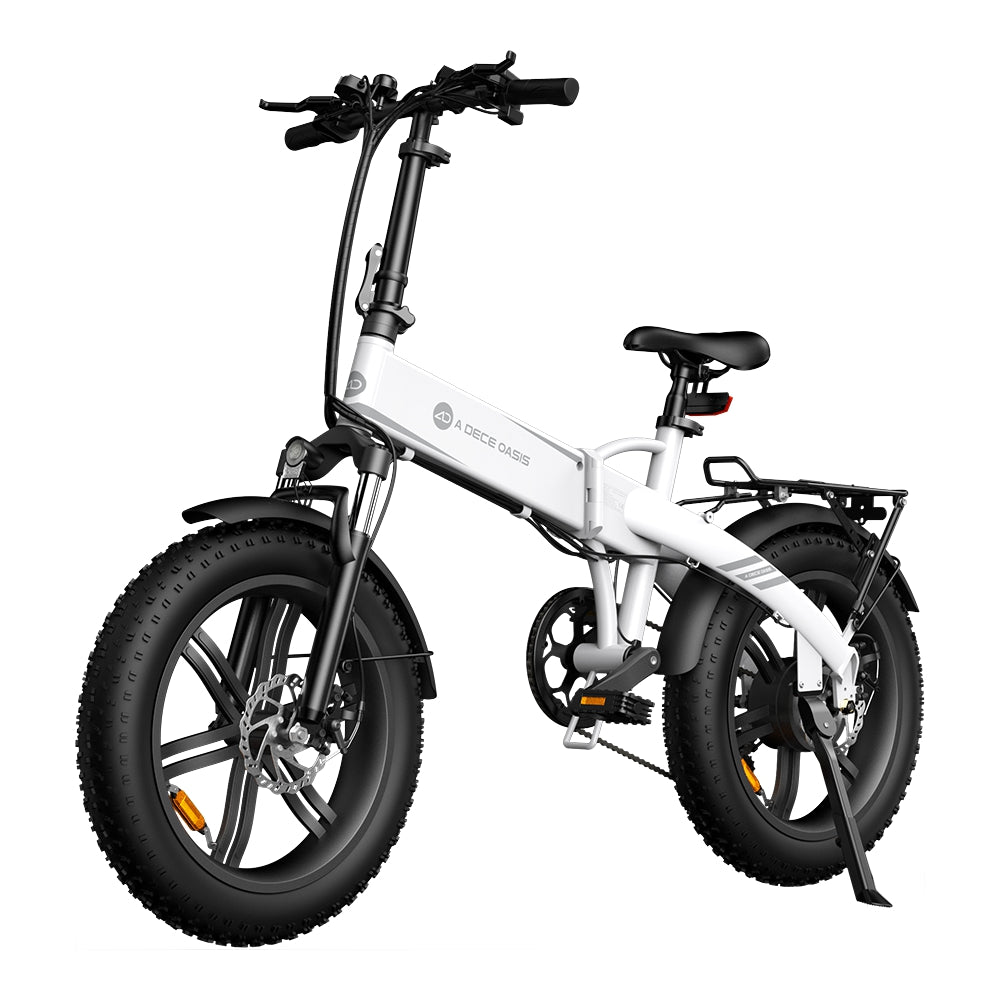

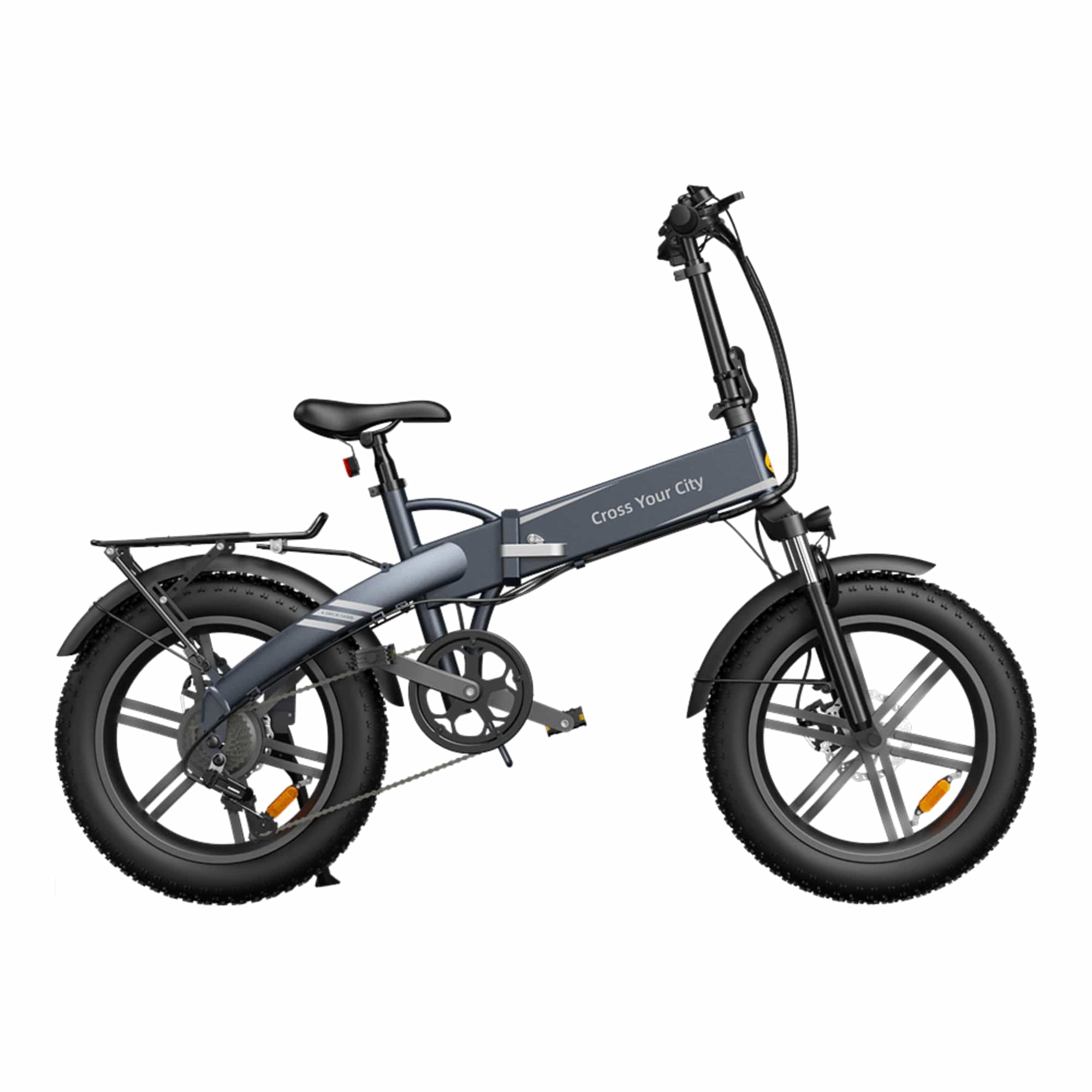

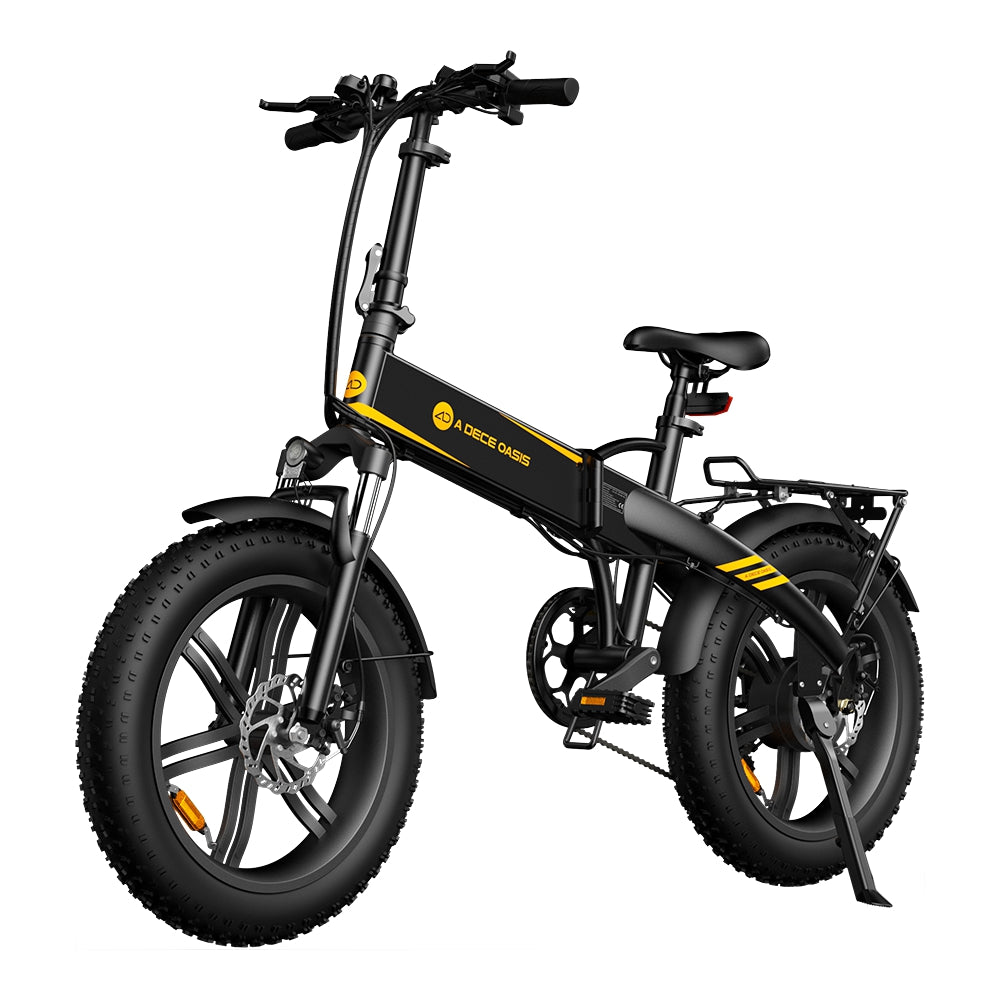

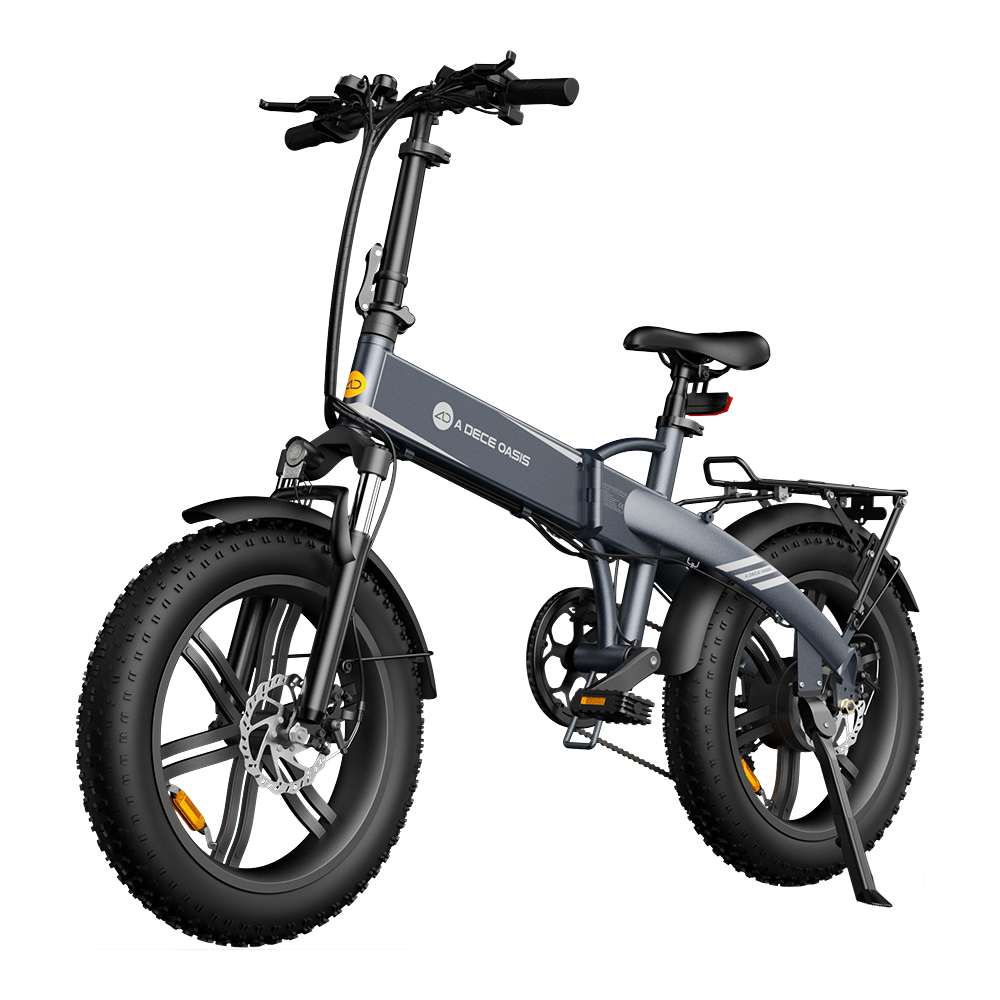

ADO A20F+ Folding Fat Tyre Electric Bike

Motor and Performance

• Top speed: 16mph (25km/h).
• Max range: 50 miles (80km) on a single charge.

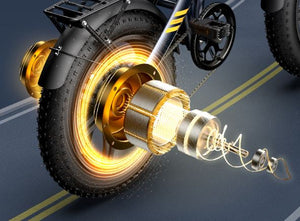

• Motor power & voltage: Equipped with a 250W motor and a 36V power supply, allowing you to cruise effortlessly at speeds up to 16mph (25km/h).
• Braking system: Double-disc braking system offers reliable braking performance for enhance safety.
• Riding modes: Change the geared electric support from 0-7, with 0 being no electric assist and 7 giving maximal assist.

Battery

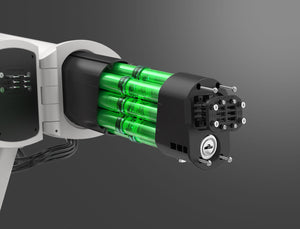

• Battery type: Detachable 36V 10.4Ah lithium-ion battery.
• Charging time: 4-6 hours of charging time.
• Output voltage: DC 36V.
• Storage temperature: -10 to 40°C.
• Protection system: Overheating, over-current, short circuit, over-charge, over-discharge protection.

Dimensions and Components

• Saddle: Adjust the saddle height to your preference.
• Gears: Experience seamless gear shifting and adaptability with the Shimano 7-speed derailleur system.
• Display: Stay informed with the HD LCD display that provides clear information at a glance.
• Suspension: Front fork shock absorber.

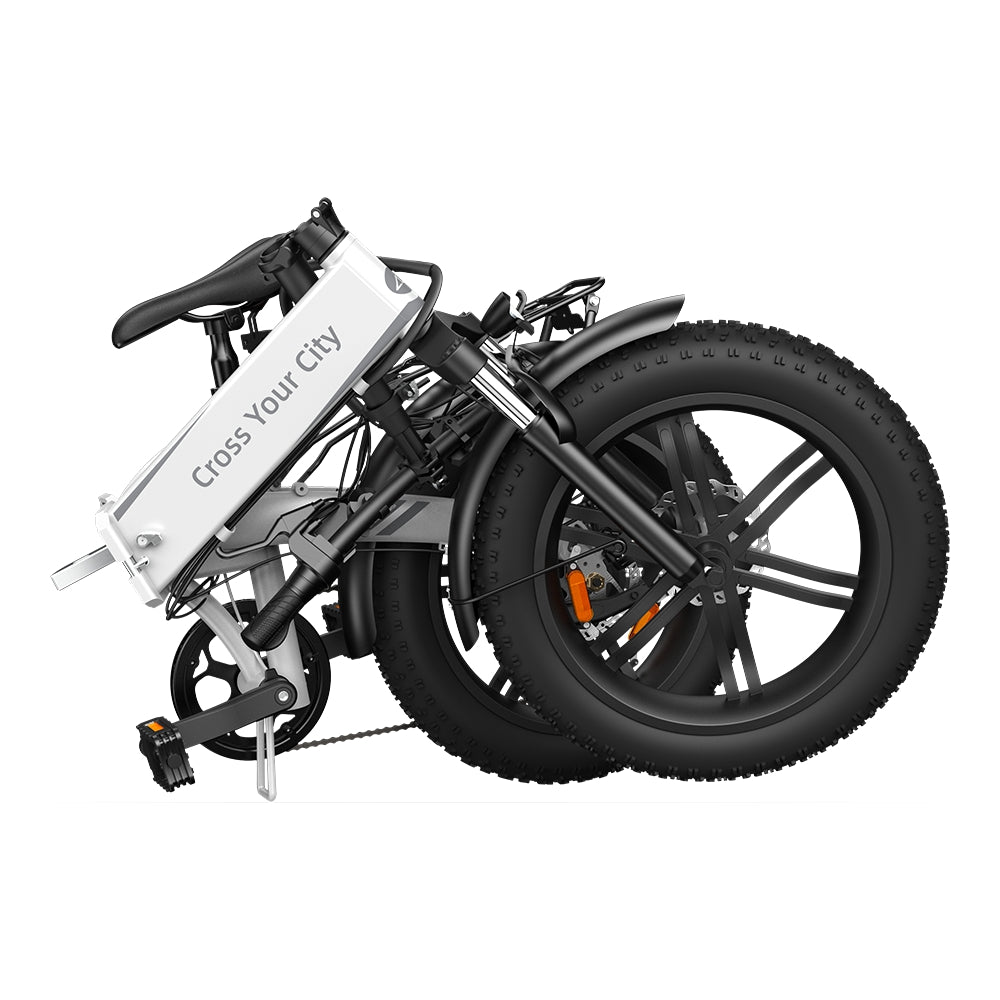

• Folded dimensions: Compact folded dimensions of 98x45x7cm.
• Frame material: Aluminium alloy.
• Tyres: The 20-inch fat anti-slip tyres offer exceptional grip. Whether riding on pavement, gravel or snowy paths, the ADO A20F+ ensures a secure and comfortable ride.
• Max load: 120kg.
• Waterproof rating: Rated IPX-5, the A20F+ can withstand light rain and splashes.
• Weight: 29kg.
• Lights: Stay visible and ride safely with the LED headlight and taillight.

Technical Support

We are committed to ensuring your complete satisfaction with your product. Our dedication extends beyond the warranty period, as we provide ongoing technical support even after it has expired. Please visit our Warranty page to learn more about our coverage.

• 1x A20F+ Electric Bike (battery included).
• 1x 42V 2A battery charger.
• 1x Set of installation tools.

Our standard delivery timeframe for your orders is usually 3-6 working days. While we strive to deliver within this timeframe, there might be occasional instances where it may take a couple of extra days. However, we are proud to mention that, in most cases, our delivery process is even faster!

For additional details regarding ordering and delivery, please refer to our Ordering and Delivery page.

Warranty

We prioritise your peace of mind when you choose to purchase from us. That's why we have attentive customer service, warranties, and a UK repair centre.

Warranty coverage:

• Main frame (1-year warranty period).
• Battery, motor, controller, charger (1-year warranty period).
• All main parts, such as the chain, hub, spokes, derailleur, and pedals (6-month warranty period).

Please note that the warranty does not cover:

• Issues arising from normal wear and tear and general use of the e-bike.

Please refer to our dedicated Warranty page for more details on our warranty process.

Are fat tyres good for e-bikes?

Fat tyres are excellent due to their numerous advantages. Fat tyres are designed for off-road and all-weather flexibility and offer better shock absorption, superior grip on rough terrains, and enhanced manoeuvrability and braking.

They allow riders to cover more distance at a controlled speed while providing a safer riding experience. With unique aesthetic appeal and adjustable air pressure, fat tyres provide e-bike enthusiasts with a versatile and enjoyable riding experience.

How much does the ADO A20F+ bike weigh?

The A20F has a net weight of 29kg, ensuring a balance between portability and stability for easy handling and manoeuvrability.

What is the range of the ADO A20F+?

With an impressive range of 50 miles (80km) on a single charge, this e-bike allows you to confidently embark on longer journeys and explore your surroundings.

What size tyres are on the ADO A20F?

The ADO A20F features 20*4.0" tyres, providing excellent traction and stability on various terrains. These fat tyres offer a smooth and comfortable ride, allowing you to tackle rough and uneven surfaces confidently.

Is the battery removable?

Yes, the battery can easily be removed for convenient charging.

Do I need to inflate the tyres?

Yes, periodically. Please refer to the tyres/instruction manual for the required pressure. You can use the hidden saddle pump to inflate your tyres.

What's the difference between the A20F+ and ADO 20+?

The A20+ is lightweight with a more petite frame, suitable for daily light travel. The ADO A20F has 4" tyres, which makes it ideal for a range of terrains, such as mountain biking and off-road.

How does the electric power work when cycling and can I change riding mode?

Change the geared electric support from 0-7, with 0 being no electric assist and 7 giving maximal assist.

Should I keep my box?

Yes. We recommend you keep your box after the delivery of your bike - this is for the unlikely case you'd need to send it back to us. For more information, visit out returns and refunds page.
